Description

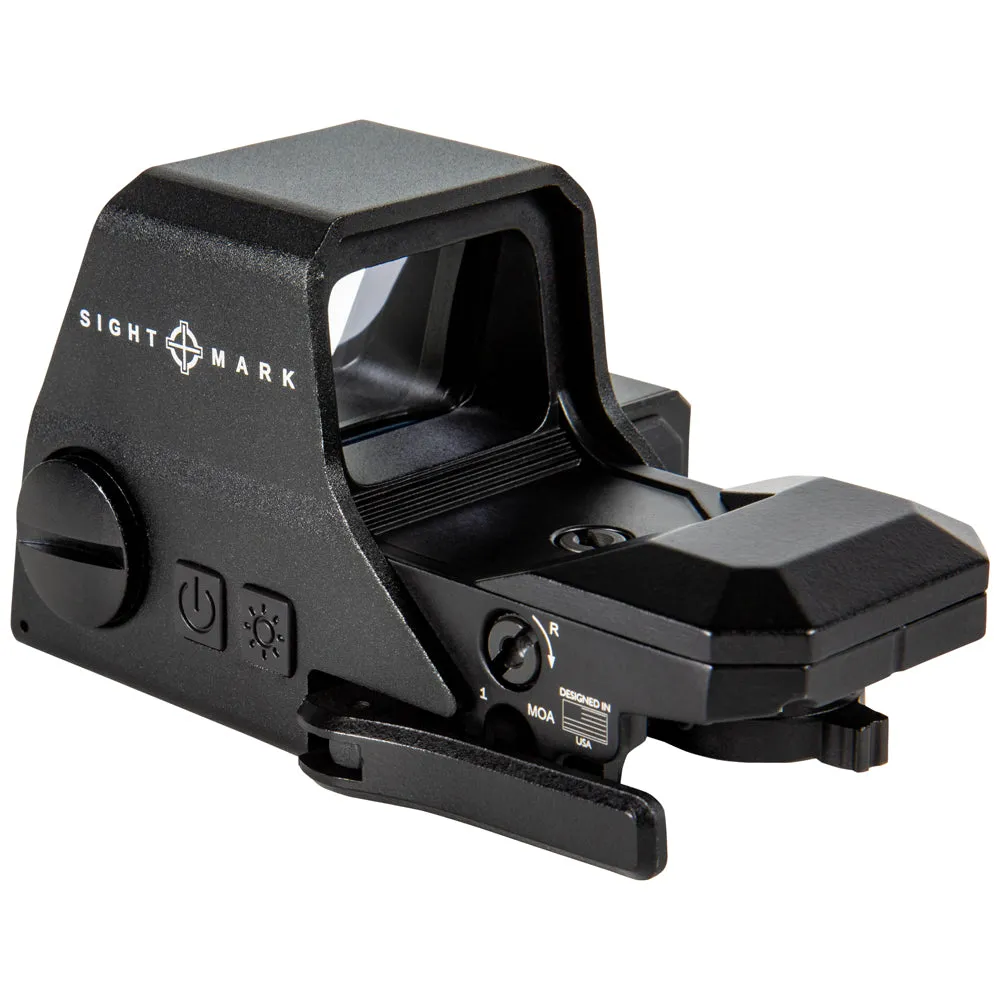

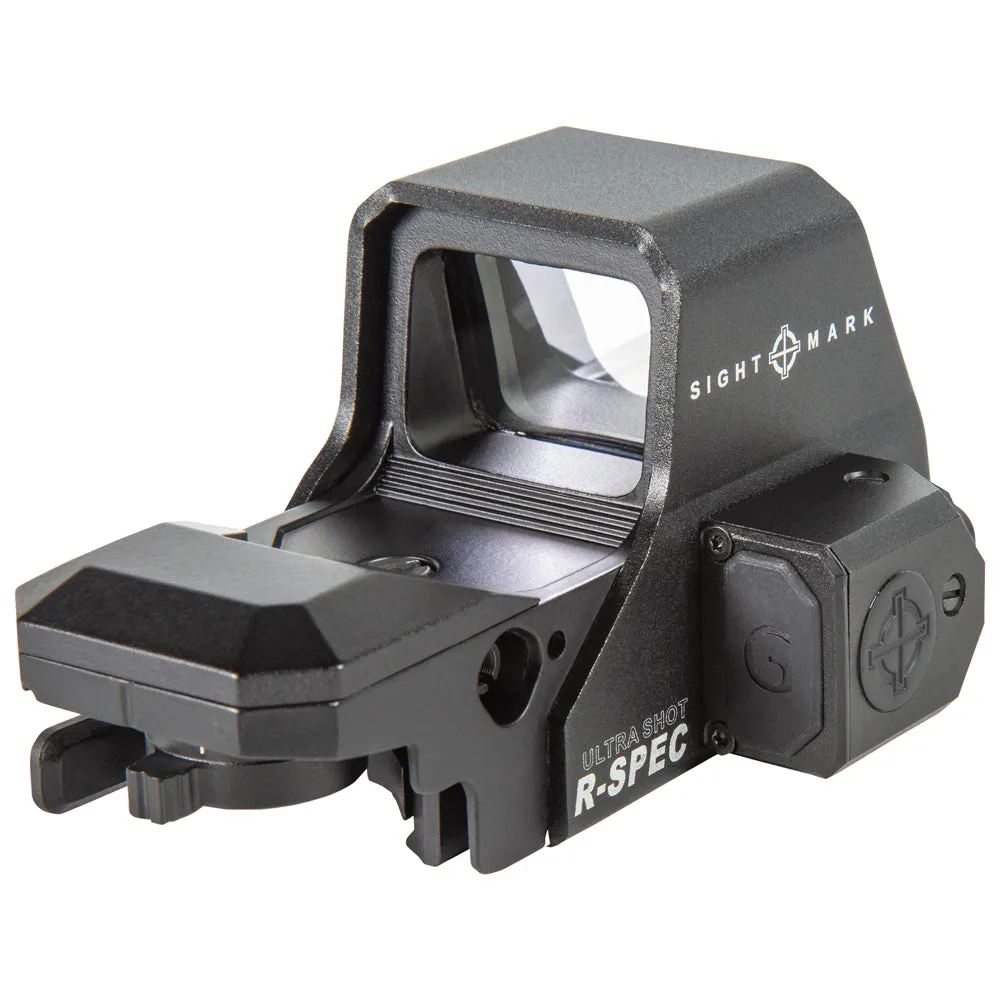

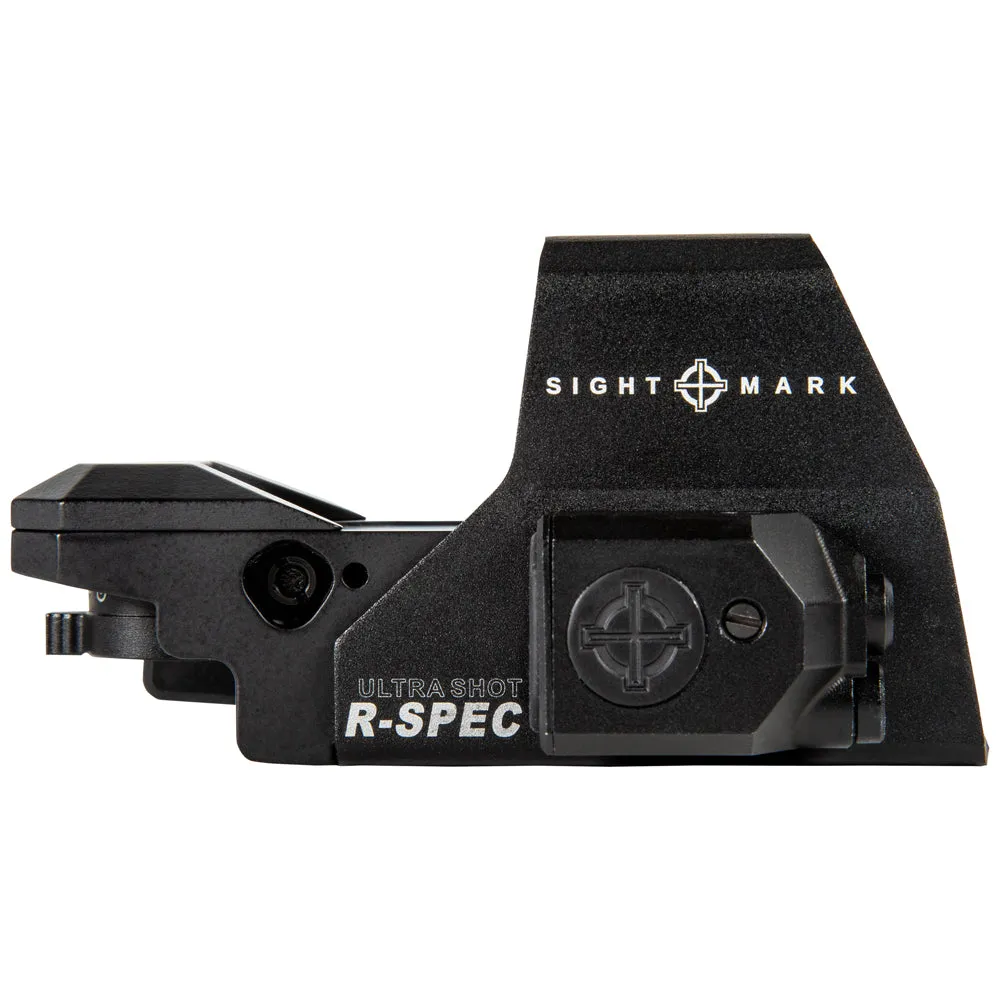

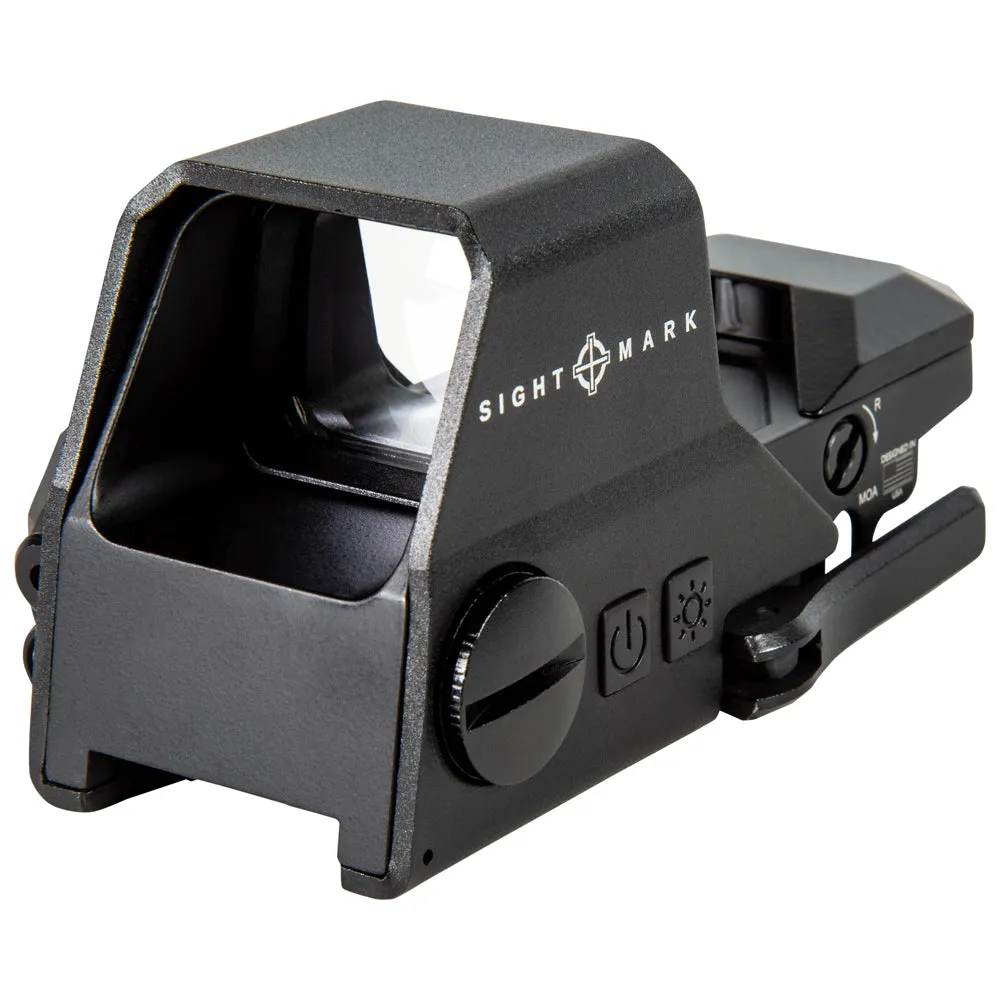

The Ultra Shot R-Spec Dual Shot Reflex Sight is the ideal optic for close- and medium-range engagements. Utilizing a red or green reticle in four unique patterns, the Ultra Shot provides unlimited eye relief and 10 brightness settings. Equipped with a quick-detach mount for Picatinny rails, its integrated green or red laser sight, wide lens and rapid target-acquisition features are excellent for close-range competitive shooting, home defense and varmint hunting. Hardy as they come, the shockproof Ultra Shot R-Spec boasts a rugged, lightweight aluminum alloy housing, protective aluminum shield, scratch-resistant lens coating, IP55 water-resistant rating, operating temperatures from -22F to 160F and can withstand calibers up to .50 BMG.
US Pat. D872219 US Pat. D872219S1
Included in Package
- Neoprene cover
- Adjustment tools
- Battery

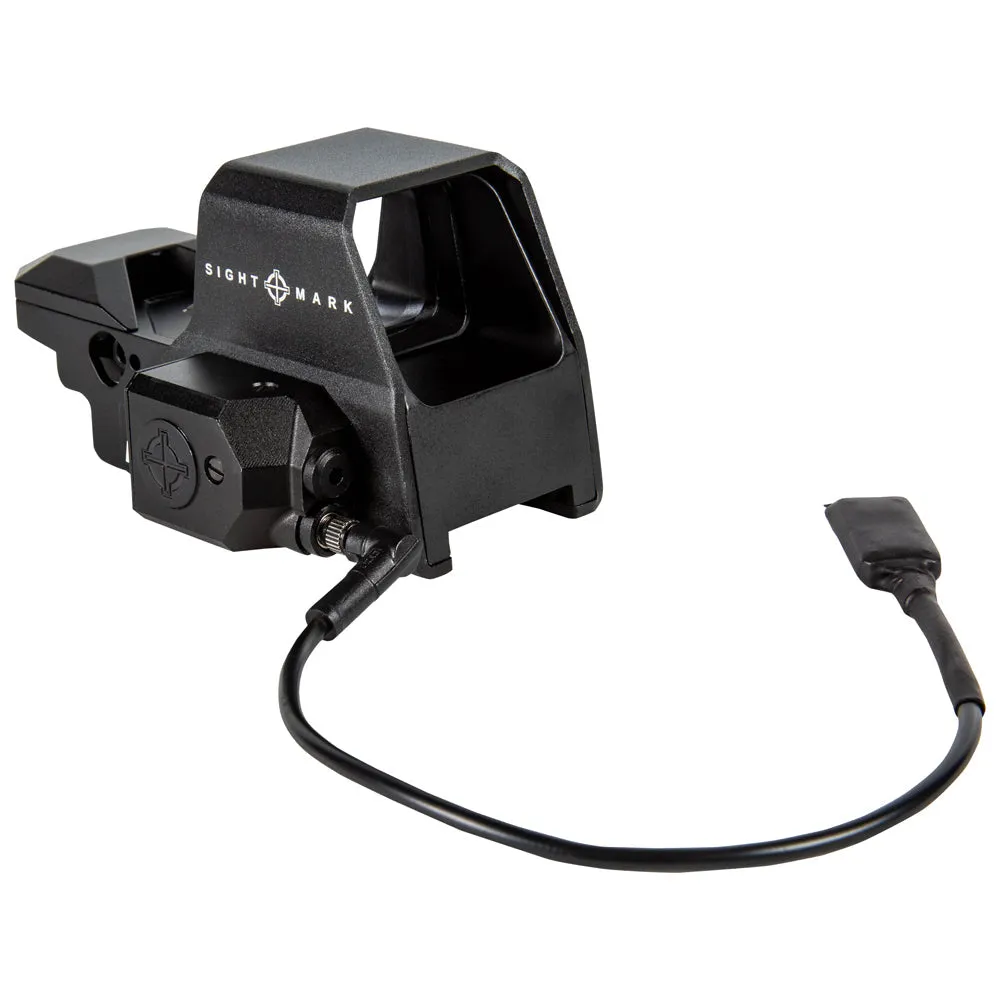

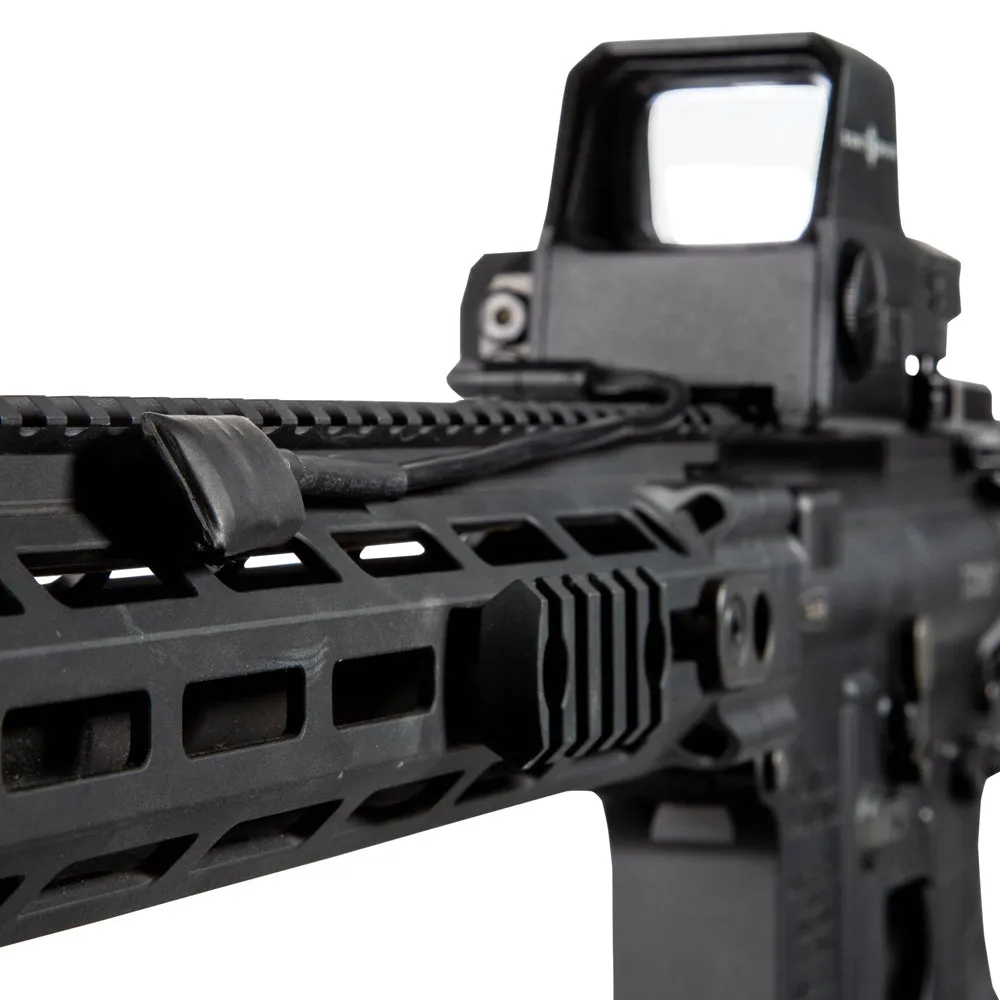

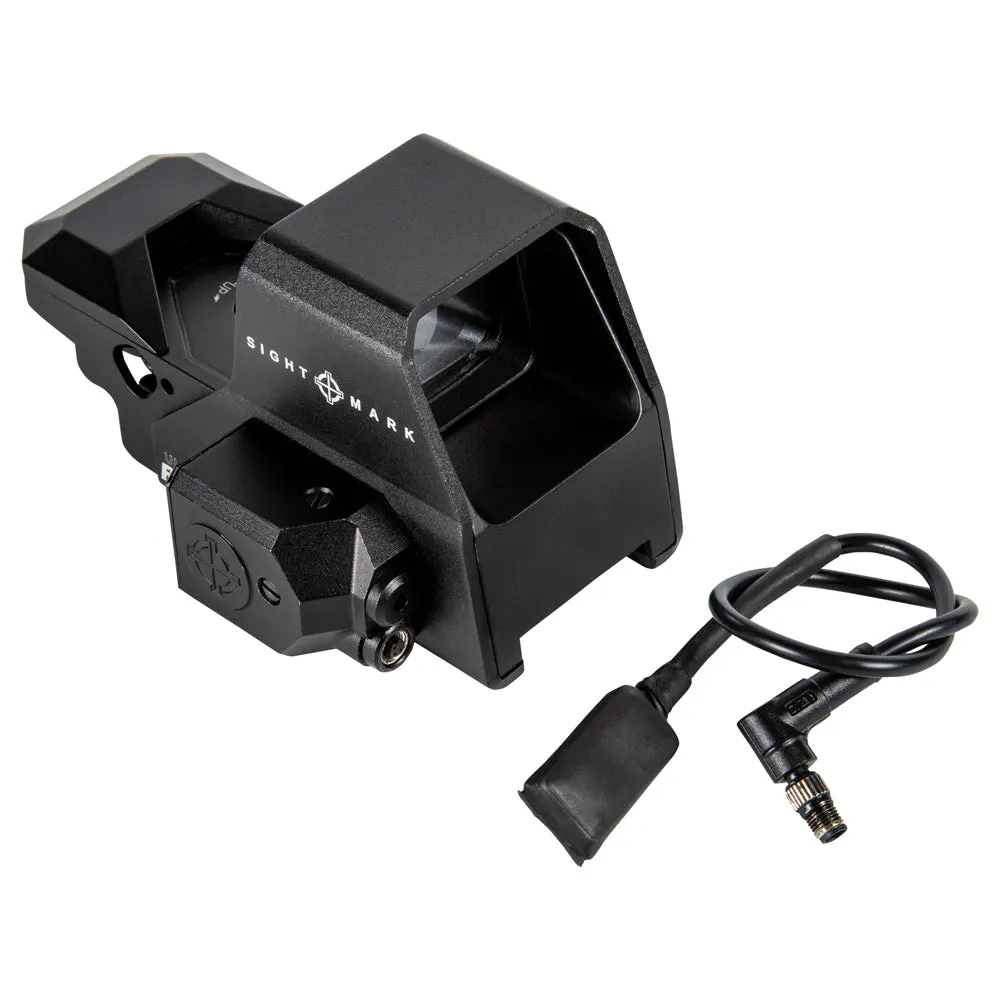

- Pressure pad
Batteries Used
- Type: CR123A
- Quantity: 1
Product Downloads
Features

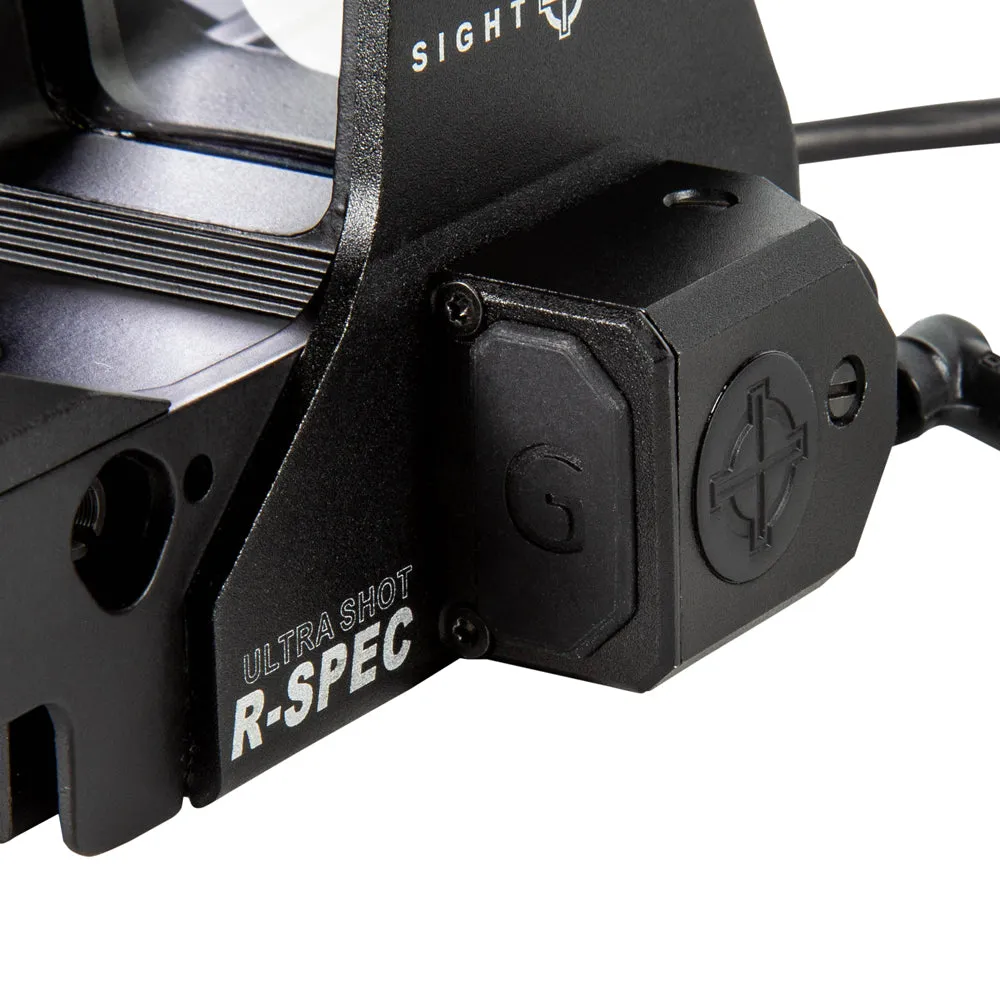

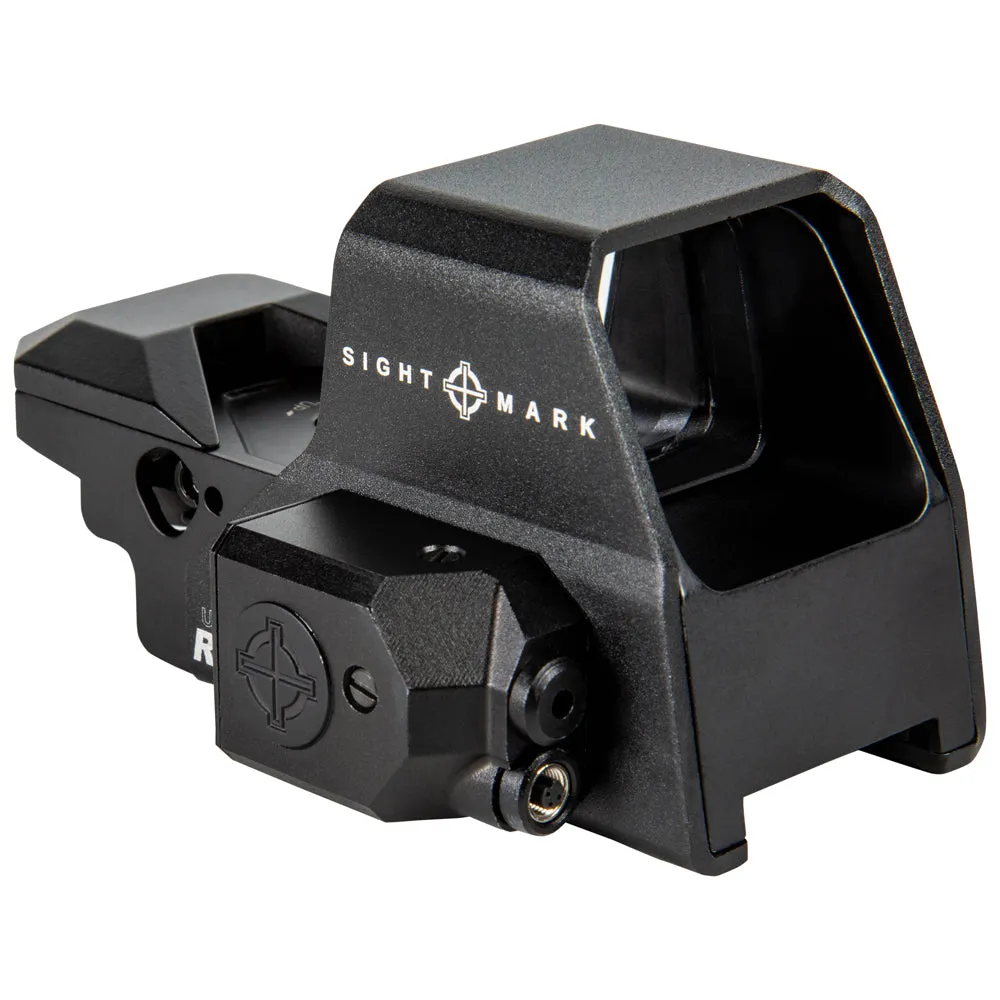

- Integrated green or red laser sight
- Rugged, lightweight aluminum alloy housing
- Protective aluminum shield

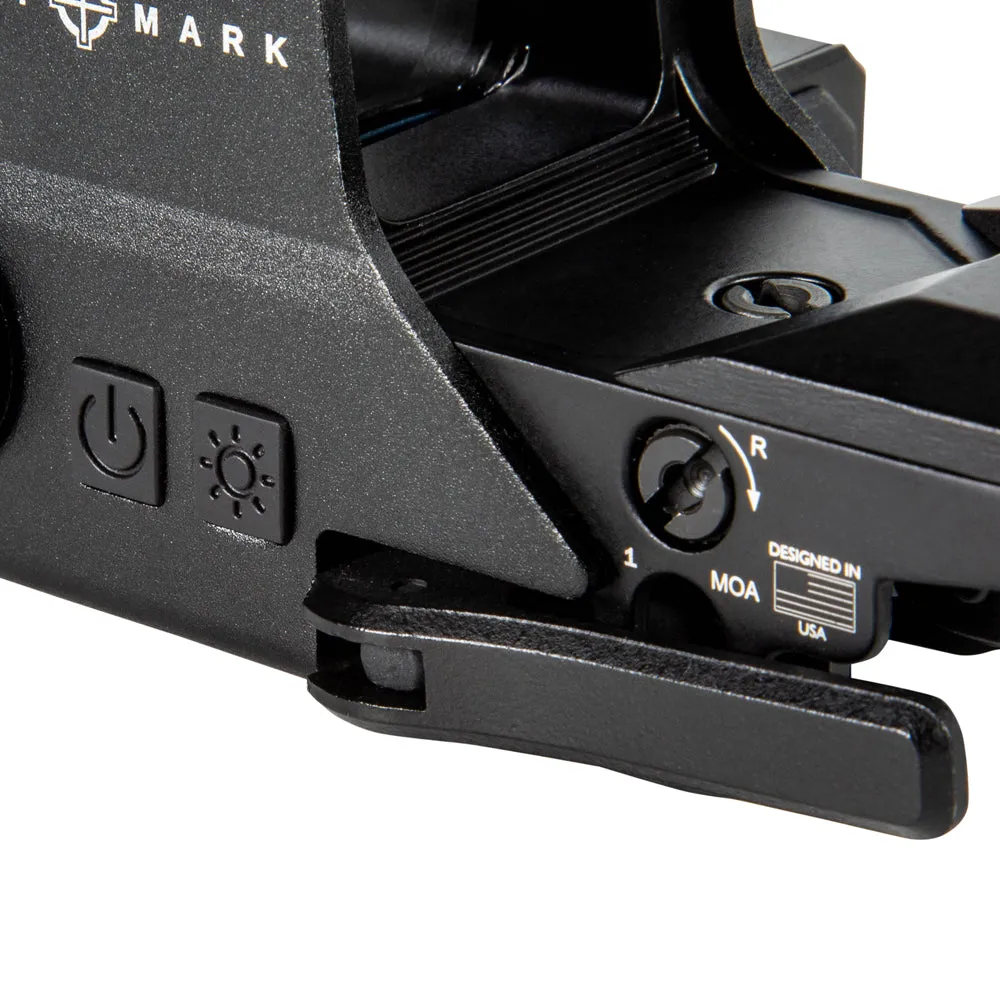

- Quick detach picatinny mount
- Wide lens for quick target acquisition
- Slotted windage and elevation adjustments
- Red and green reticle illumination
- Low battery indicator

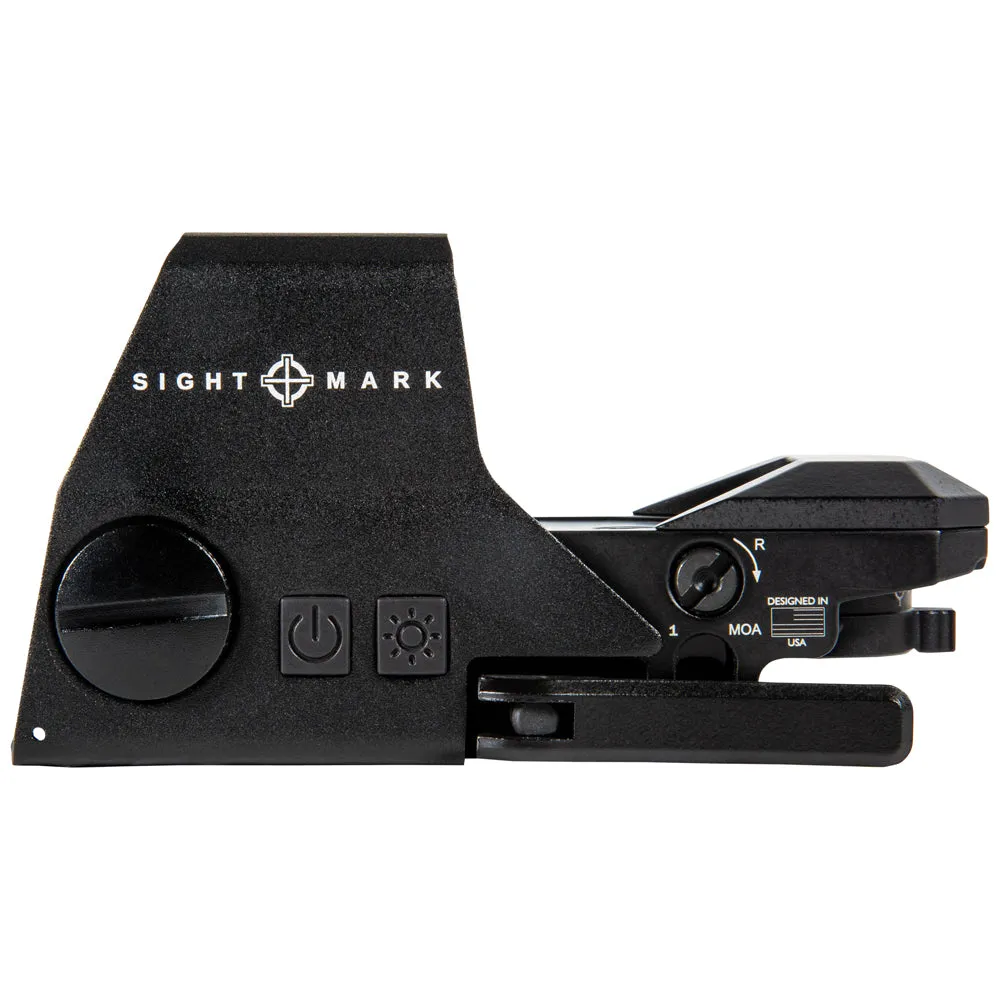

- Digital switch controls
- 10 reticle brightness levels
- 1-hour auto shutoff
- Multiple reticle pattern options
- Scratch-resistant lens coating
- Interlok internal locking adjustment system
EXPORT CONTROL NOTICE: This product is controlled for export and in-country transfer under the Export Administration Regulations (EAR). division contrary to U.S. law prohibited.
Specifications

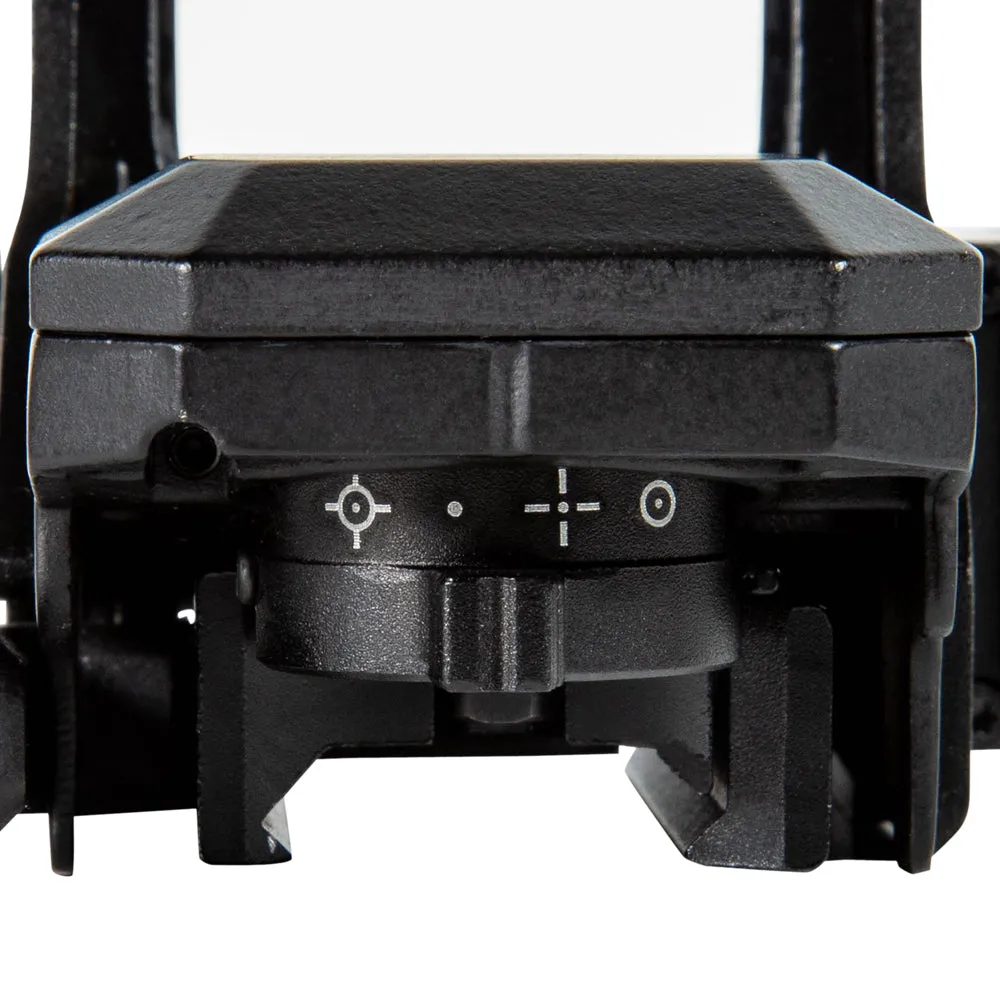

| Reticle, Type | 4 Pattern - 5 MOA dot, 3 MOA dot with 50 MOA circle, 3 MOA dot with 50 MOA crossshair, 3 MOA dot with 30 MOA circle/crosshair (subtensions total 50 MOA) |
|---|---|
| Reticle, Color | Red and Green |
| Magnification | 1 |
| Reticle Brightness Setting | Off, 1-10 |
| Eye relief (in/mm) | Unlimited in/mm |
| Objective overall dimension (mm) | 33x24 mm |
| Elevation Adjustment | 120 MOA |
| Windage Adjustment | 120 MOA |
| Adjustment Value | 1 MOA |
| Parallax Setting | 25 / 23 yd/m |
| Finish/Color | Matte Black |
| Body Material | Aluminum 6061-T6 |
| Maximum Recoil | .50 BMG Max caliber |
| Waterproof IP Standard | IP55 - water resistant |
| Shockproof | Yes, 8ft / 2.4m |
| Fog Proof | No |
| Lens Coating | AR Silver |
| Nitrogen Filled | No |
| Battery Life | 200 - 2,000 Hours |
| Mount Type | Picatinny |
| Battery Type | CR123A |
| Battery Voltage, V | 3V |
| Width | 2.8 / 71 in / mm |
| Length | 4.33 / 110 in / mm |
| Height | 2.28 / 58 in / mm |
| Weight, oz | 10.8 oz |
| Operating temperature, F/C | -22 to 160 / -30 to 71 F/C |
